DMP4025LK3 Datasheet - Diodes

40V P-CHANNEL MOSFET

DMP4025LK3 Features

* Low On-Resistance

* Fast Switching Speed

* Low Input/Output Leakage

* Lead-Free Finish; RoHS compliant (Note 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qualified to AEC-Q101 Standards for High Reliability Mechanical Data

* Case: TO252 (DPAK)

* Cas

DMP4025LK3 General Description

This MOSFET has been designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications * Motor control * Backlighting * DC-DC Converters * Printer equipment DMP4025LK3 40V P-.

DMP4025LK3 Datasheet (814.31 KB)

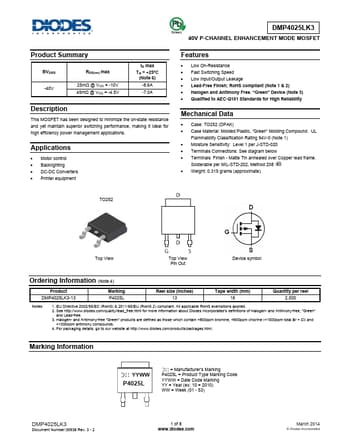

DMP4025LK3 Datasheet Preview — Preview of DMP4025LK3 PDF

Datasheet Details

Part number:

DMP4025LK3

Manufacturer:

DIODES ↗

File Size:

814.31 KB

Description:

40v p-channel mosfet.
ADVANCE INFORMATION Product Summary BVDSS -40V RDS(on) max 25mΩ @ VGS = -10V 45mΩ @ VGS = -4.5V ID max TA = +25°C (Note 6) -8.6A -7.0A Descriptio.
