FZT792A, 70V PNP MEDIUM POWER TRANSISTOR

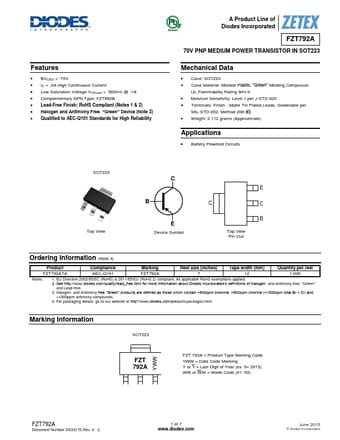

datasheet Preview Page 1 from Datasheet4u.com

FZT792A-Diodes.pdf

FZT792A Datasheet Preview — Preview of FZT792A PDF

Datasheet Details

Part number:

FZT792A

Manufacturer:

DIODES ↗

File Size:

677.00 KB

Description:

70V PNP MEDIUM POWER TRANSISTOR

Features

* BVCEO > -70V
* IC = -2A High Continuous Current
* Low Saturation Voltage VCE(sat) < -500mV @ -1A
* Complementary NPN Type: FZT692B
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for

Applications

* Battery Powered Circuits SOT223 Top View C B E Device Symbol E CC Top View Pin-Out B Ordering Information (Note 4) Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel FZT792ATA AEC-Q101 FZT792A 7 12 1,000 Notes: 1. EU Directive 2002/95/EC (RoHS)
