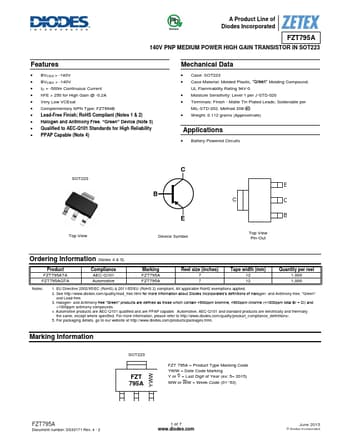

FZT795A Datasheet, Transistor, Diodes

✔ FZT795A Features

BVCEO > -140V
BVCBO > -140V
IC = -500m Continuous Current
hFE > 250 for High Gain @ -0.2A
Very Low VCEsat
Complementary NPN Type: FZT694B
Lead-Free Finish;

✔ FZT795A Application

Battery Powered Circuits SOT223 Top View C B E Device Symbol C Top View Pin-Out E C B Ordering Inform

PDF File Details

Diodes manufacturer logo

Part number:

FZT795A

Manufacturer:

DIODES ↗

File Size:

795.89kb

Download:

📄 Datasheet

Description:

140v pnp medium power high gain transistor.

📥 Download PDF (795.89kb)
