FZT796A - 200V PNP MEDIUM POWER HIGH GAIN TRANSISTOR

Diodes

Datasheet Details

Part number	FZT796A
Manufacturer	DIODES ↗
File Size	795.48 KB
Description	200V PNP MEDIUM POWER HIGH GAIN TRANSISTOR

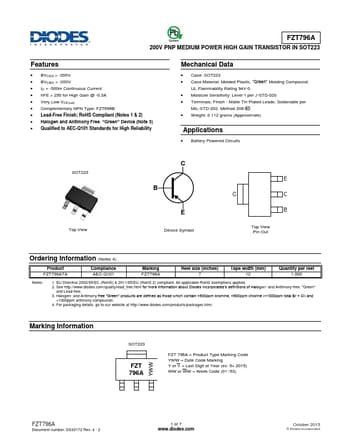

Datasheet	FZT796A-Diodes.pdf

BVCEO > -200V.
BVCBO > -200V.
IC = -500m Continuous Current.
hFE > 250 for High Gain @ -0.3A.
Very Low VCE(sat).
Complementary NPN Type: FZT696B.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT223.
Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Rating 94V-0.
Moisture Sensitivity:.
