FZT790A Datasheet - Fairchild Semiconductor

FZT790A PNP Low Saturation Transistor

FZT790A Discrete Power & Signal Technologies July 1998 FZT790A C E B C SOT-223 PNP Low Saturation Transistor These devices are designed with high current gain and low saturation voltage with collector currents up to 3A continuous. Absolute Maximum Ratings Symbol VCEO VCBO VEBO IC TJ, Tstg Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted FZT790A 40 50 5 3 -55 to +150 Units V V V A °C Ope.

FZT790A_FairchildSemiconductor.pdf

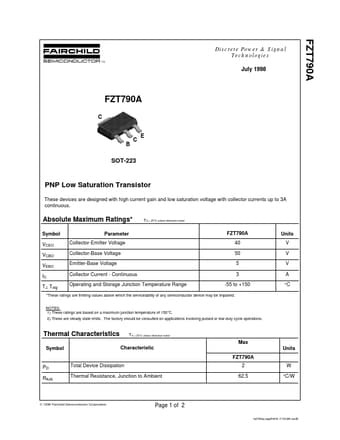

Preview of FZT790A PDF
FZT790A Datasheet Preview Page 2

Datasheet Details

Part number:

FZT790A

Manufacturer:

Fairchild Semiconductor

File Size:

44.20 KB

Description:

Pnp low saturation transistor.
