MBR3045CT - 30A SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Description

This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.

Polarity Protection Diode Re-Circulating Diode Switching Diode Mechanical Data Case: TO-220AB, ITO-220AB Case Mate

Features

  • Guard Ring Die Construction for Transient Protection.
  • High Surge Current Capability.
  • Low Forward Voltage Drop.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

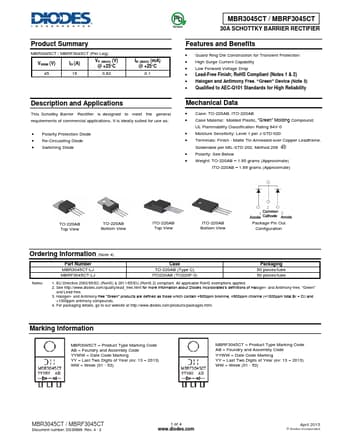

Datasheet preview – MBR3045CT

Datasheet Details

Part number MBR3045CT
Manufacturer DIODES
File Size 448.38 KB
Description 30A SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR3045CT Datasheet
Additional preview pages of the MBR3045CT datasheet.

📁 Similar Datasheet

  • MBR3045CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBR3045CT - SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MBR3045CT - 30A High Power Schottky Barrier Rectifiers (CITC)
  • MBR3045CT - Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3045CT - Dual Common Cathode Schottky Rectifier (Vishay Siliconix)
  • MBR3045CT - 30 A SCHOTTKY RECTIFIERS (Digitron Semiconductors)
  • MBR3045CT - Schottky Barrier Rectifiers (Microsemi)
  • MBR3045CT - 30 AMPERS SCHOTTKY BARRIER RECTIFIER (GOOD ELECTRONIC)
  • MBR3045CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBR3045CT - Schottky Barrier Rectifiers (LGE)
Other Datasheets by Diodes
  • MBR3045CTP - 30A SCHOTTKY BARRIER RECTIFIER
  • MBR3045C - HIGH EFFICIENCY POWER SCHOTTKY RECTIFIER
  • MBR30100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
  • MBR30100CT - 30A SCHOTTKY BARRIER RECTIFIER
  • MBR3060CTP - 30A SCHOTTKY BARRIER RECTIFIER
  • MBR30H100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
  • MBR3100 - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
  • MBR0580S1 - 0.5A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
ADVANCED INFORMATION MBR3045CT / MBRF3045CT Green 30A SCHOTTKY BARRIER RECTIFIER Product Summary MBR3045CT / MBRF3045CT (Per Leg) VRRM (V) IO (A) VF (MAX) (V) @ +25°C 45 15 0.62 IR (MAX) (mA) @ +25°C 0.1 Features and Benefits  Guard Ring Die Construction for Transient Protection  High Surge Current Capability  Low Forward Voltage Drop  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Description and Applications This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.
