MBR3060CTP - 30A SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Low Forward Voltage Drop.
  • Soft, Fast Switching Capability.
  • Schottky Barrier Chip.
  • ITO-220S Heat Sink Tab Electrically Isolated from Cathode.
  • UL Approval in Accordance with UL 1557, Reference No. E94661 MBR3060CTP 30A.

📥 Download Datasheet

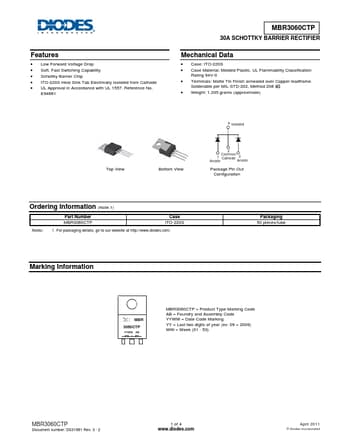

Datasheet preview – MBR3060CTP

Datasheet Details

Part number MBR3060CTP
Manufacturer DIODES
File Size 72.10 KB
Description 30A SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR3060CTP Datasheet
Additional preview pages of the MBR3060CTP datasheet.
