Part number: MBR3060CT-Y
Manufacturer: Taiwan Semiconductor
File Size: 197.29KB
Download: 📄 Datasheet

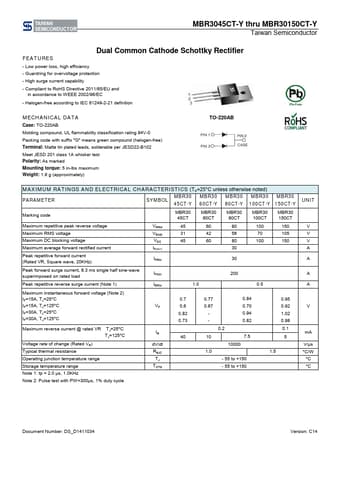

Description: Dual Common Cathode Schottky Rectifier
- Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability
- Compliant to RoHS Directive 2011/65/EU and in accordance to WEE.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully indemn.
Green compound
RATINGS AND CHARACTERISTICS CURVES
(TA=25°C unless otherwise noted)
AVERAGE FORWARD A CURRENT (A)
FIG.1- FORWARD CURRENT DERATING CURVE 35
30
25
20
15
10 RESISTIVE OR INDUCTIVELOAD
5 WITH HEATSINK
0 0 50 100 150 CASE TEMPERATURE (oC.
