MBR3060E - 30A SCHOOTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR3060E, a member of the MBR3060A 30A SCHOOTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

  • Guard Ring for Stress Protection.
  • Low Forward Voltage.
  • Low Power Loss/High Efficiency.
  • High Surge Capacity.
  • Low Stored Charge Majority Carrier Conduction.
  • Pb Free Packages are Available.
  • Symbol 4 (per Leg) 2 Common 1 Cathoed 3 Anode Anode TO-220 TO-220F TO-263.
  • ORDER.

📥 Download Datasheet

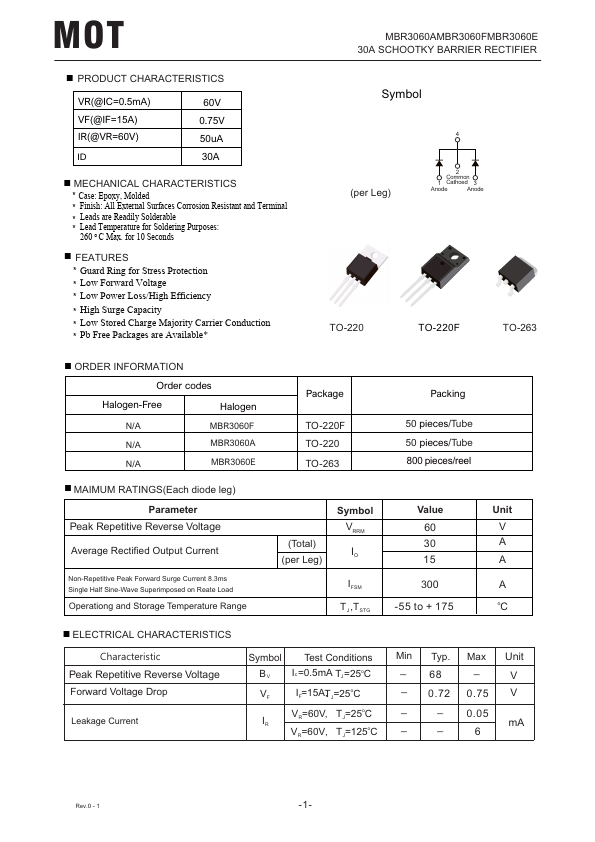

Datasheet preview – MBR3060E

Datasheet Details

Part number MBR3060E
Manufacturer MOT
File Size 2.86 MB
Description 30A SCHOOTKY BARRIER RECTIFIER
Datasheet download datasheet MBR3060E Datasheet

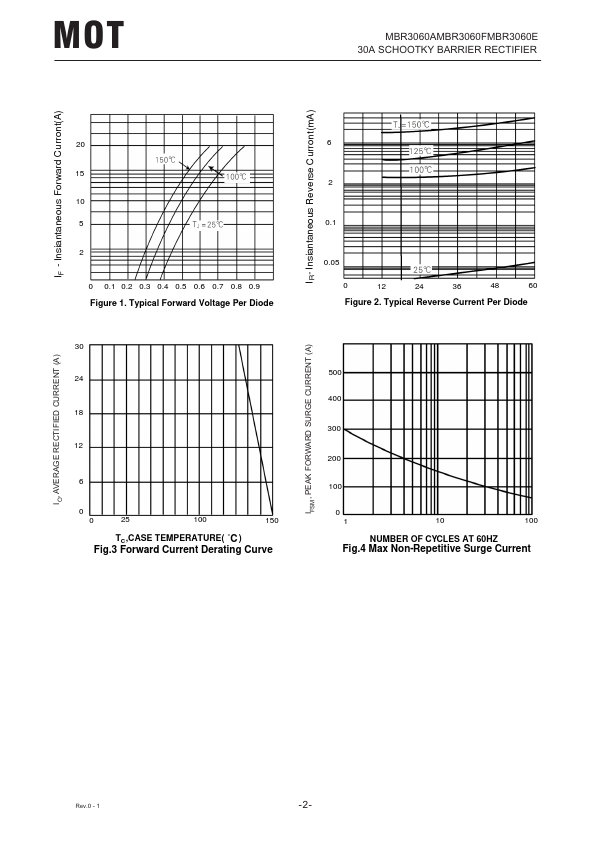

Additional preview pages of the MBR3060E datasheet.

📁 Similar Datasheet

  • MBR3060 - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBR3060 - Axial Lead Rectifier (ON Semiconductor)
  • MBR3060 - Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3060 - SCHOTTKY BARRIER RECTIFIER (Byte)
  • MBR3060 - Axial Lead Rectifier (ON Semiconductor)
  • MBR3060C - 30A SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR3060CT - Schottky Barrier Diode (SIRECTIFIER)
  • MBR3060CT - Schottky Barrier Rectifier (INCHANGE)
  • MBR3060CT - SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MBR3060CT - 30A High Power Schottky Barrier Rectifiers (CITC)
Other Datasheets by MOT
  • MBR3060A - 30A SCHOOTKY BARRIER RECTIFIER
  • MBR3060F - 30A SCHOOTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
MOT MBR3060A/MBR3060F/MBR3060E 30A SCHOOTKY BARRIER RECTIFIER „ PRODUCT CHARACTERISTICS VR(@IC=0.5mA) VF(@IF=15A) IR(@VR=60V) ID 60V 0.75V 50uA 30A „ MECHANICAL CHARACTERISTICS * Case: Epoxy, Molded * Finish: All External Surfaces Corrosion Resistant and Terminal * Leads are Readily Solderable * Lead Temperature for Soldering Purposes: 260 °C Max.
