MMBT3906LP - 40V PNP SMALL SIGNAL TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

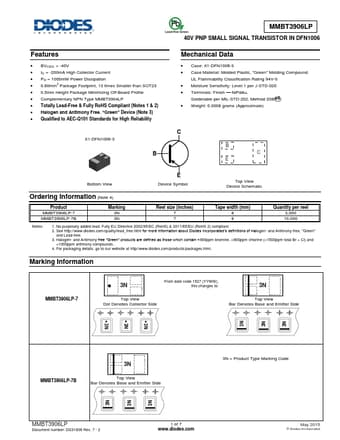

MMBT3906LP 40V PNP SMALL SIGNAL TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – MMBT3906LP

Datasheet Details

Part number	MMBT3906LP
Manufacturer	DIODES
File Size	358.83 KB
Description	40V PNP SMALL SIGNAL TRANSISTOR
Datasheet	MMBT3906LP Datasheet
Additional preview pages of the MMBT3906LP datasheet.

Product details

Features

BVCEO > -40V.
IC = -200mA High Collector Current.
PD = 1000mW Power Dissipation.
0.60mm2 Package Footprint, 13 times Smaller than SOT23.
0.5mm Height Package Minimizing Off-Board Profile.
Complementary NPN Type MMBT3904LP.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability X1-DFN1006-3 B Mechanical Data.
Case: X1-DFN1006-3.
Case.
