BY135 - Silicon Rectifiers

This page provides the datasheet information for the BY135, a member of the BY133 Silicon Rectifiers family.

Datasheet Summary

Features

  • VRRM up to 1300V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb Besonderheiten VRRM bis zu 1300V Konform zu RoHS, REACH, Konfliktmineralien 1) 62.5 -+40..55 Type +0.1 5.1 -0.5 ELV Mechanical Data 1) Mechanische Daten 1) Taped in ammo pack 5000 Gegurtet in Ammo-Pack Ø 0.77±0.07 Weight approx. Case material 0.4 g UL 94V-0 Gewicht ca. Gehäusematerial Solder & assembly conditions 260°C/10s Löt- und Einbaubedingungen Dimensions - Maße [mm] MSL N/A Maximum ratings 2) Ty.

📥 Download Datasheet

Datasheet preview – BY135

Datasheet Details

Part number BY135
Manufacturer Diotec Semiconductor
File Size 135.65 KB
Description Silicon Rectifiers
Datasheet download datasheet BY135 Datasheet

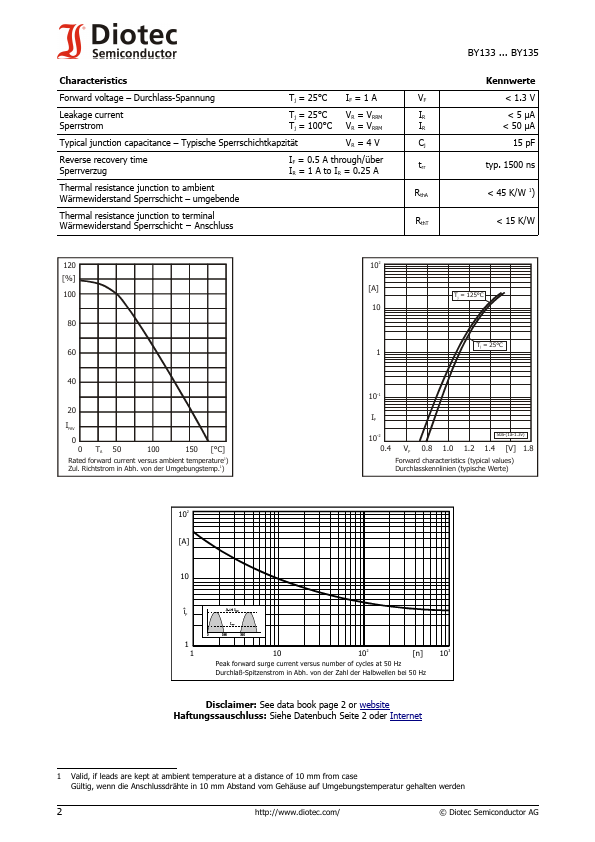

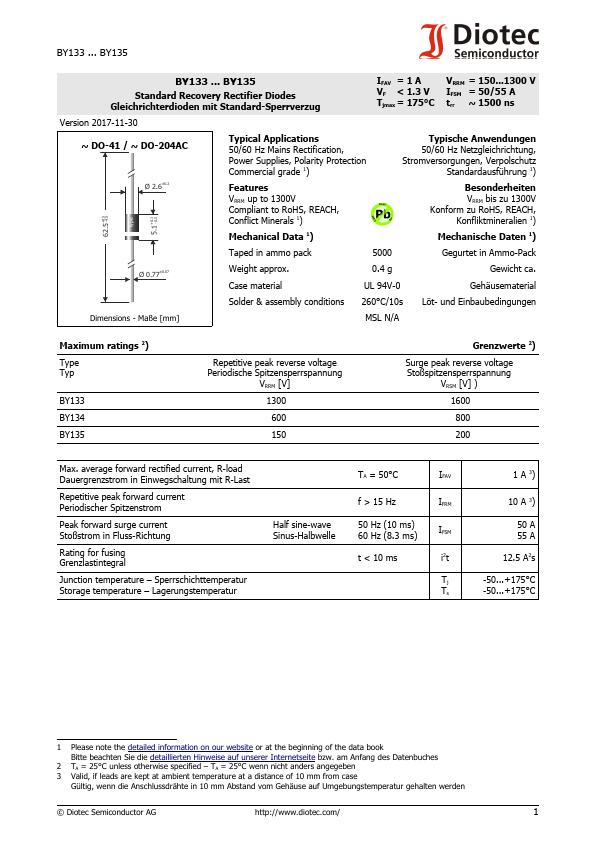

Additional preview pages of the BY135 datasheet.

📁 Similar Datasheet

  • BY135 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
Other Datasheets by Diotec Semiconductor
  • BY133 - Silicon Rectifiers
  • BY134 - Silicon Rectifiers
  • BY12 - High Voltage Si-Rectifiers
  • BY16 - Silicon Rectifiers
  • BY1600 - Silicon Rectifiers
  • BY164 - Silicon-Bridge Rectifiers
  • BY179 - Silicon-Bridge Rectifiers
  • BY1800 - Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text
BY133 ... BY135 BY133 ... BY135 Standard Recovery Rectifier Diodes Gleichrichterdioden mit Standard-Sperrverzug IFAV = 1 A VF < 1.3 V Tjmax = 175°C VRRM = 150...1300 V IFSM = 50/55 A trr ~ 1500 ns Version 2017-11-30 ~ DO-41 / ~ DO-204AC Typical Applications 50/60 Hz Mains Rectification, Power Supplies, Polarity Protection Commercial grade 1) Typische Anwendungen 50/60 Hz Netzgleichrichtung, Stromversorgungen, Verpolschutz Standardausführung 1) Ø 2.6±0.2 Features VRRM up to 1300V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb Besonderheiten VRRM bis zu 1300V Konform zu RoHS, REACH, Konfliktmineralien 1) 62.5 -+40..55 Type +0.1 5.1 -0.5 ELV Mechanical Data 1) Mechanische Daten 1) Taped in ammo pack 5000 Gegurtet in Ammo-Pack Ø 0.77±0.07 Weight approx.
