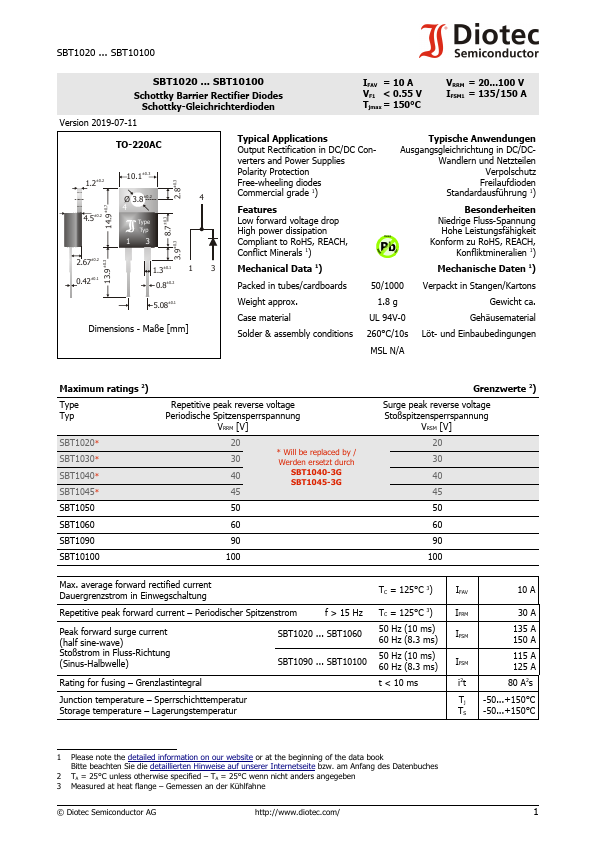

SBT1090 - Schottky Barrier Rectifiers

Product Overview

Diotec Semiconductor

Part number	SBT1090
Manufacturer	Diotec Semiconductor
File Size	263.00 KB
Description	Schottky Barrier Rectifiers
Datasheet	SBT1090 Datasheet
Note	This datasheet PDF includes multiple part numbers: SBT1090, SBT1045. Please refer to the document for exact specifications by model.

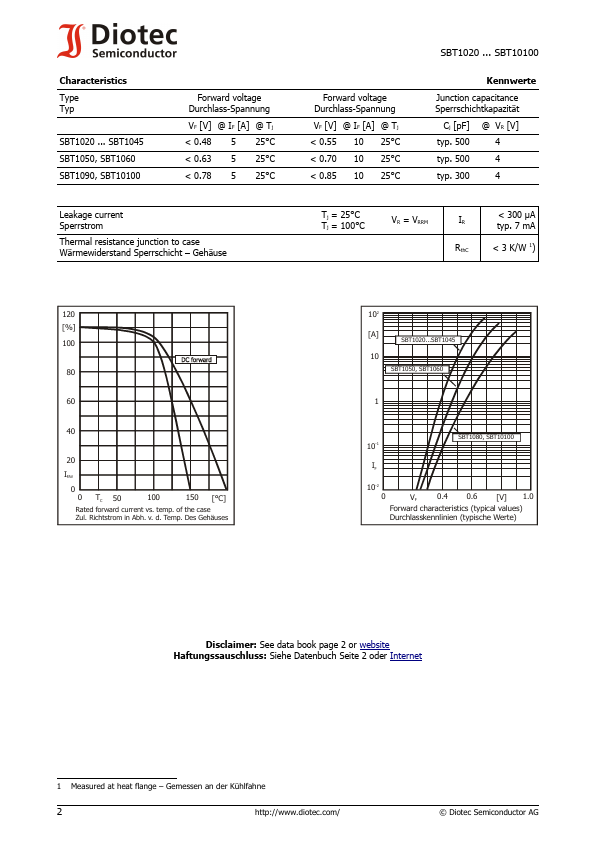

Additional preview pages of the SBT1090 datasheet.

Low forward voltage drop High power dissipation Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Besonderheiten Niedrige Fluss-Spannung Hohe Leistungsfähigkeit Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) Packed in tubes/cardboards 50/1000 Verpackt in Stangen/Kartons 5.08±0.1 Dimensions - Maße [mm] Weight approx. Case material Solder & assembly conditions 1.8 g UL 94V-0 260°C/10s Gewicht ca. Gehäusematerial Löt- und Einbaubed.
