DFB70N06

N-Channel MOSFET

DFB70N06 Features

* Low RDS(on) (0.014Ω )@VGS=10V Low Gate Charge (Typical 70nC) Low Crss (Typical 160pF) Improved dv/dt Capability 100% Avalanche Tested Maximum Junction Temperature Range 2.Drain BVDSS = 60V 1.Gate 3.Source RDS(ON) = 0.014 ohm ID = 70A General Description This

DFB70N06 General Description

This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intended for battery operated systems like a DC-DC converter motor control , ups ,audio amplifier. Also, especially designed to minimize rds(on) , low gate charge and high r.

DFB70N06 Datasheet (751.09 KB)

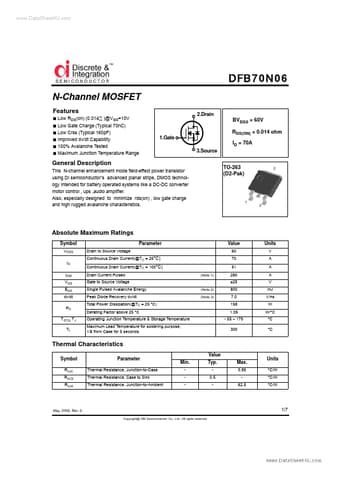

Preview of DFB70N06 PDF

Datasheet Details

Part number:

DFB70N06

Manufacturer:

DnI

File Size:

751.09 KB

Description:

N-channel mosfet.
