DK5V45R10S High Performance Synchronous Rectifier

📥 Download Datasheet Datasheet Preview Page 1

Description

DK5V45R10S 10mΩ/45V, High Performance Synchronous Rectifier IC Product .
DK5V45R10S is a simple but high efficiency synchronous rectifier solution with only two function pins A-K, corresponding A-K pins of Schottky diode.

📥 Download Datasheet

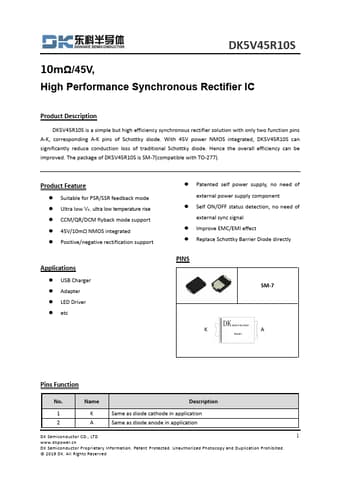

Preview of DK5V45R10S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DK5V45R10S
Manufacturer
DongKe Semicondutor
File Size
567.37 KB
Datasheet
DK5V45R10S-DongKeSemicondutor.pdf
Description
High Performance Synchronous Rectifier

Applications

* USB Charger
* Adapter
* LED Driver
* etc
* Patented self power supply, no need of external power supply component
* Self ON/OFF status detection, no need of external sync signal
* Improve EMC/EMI effect
* Replace Schottky Barrier Diode directly PINS SM-7 Batch Num
