Part number:
DIM300XCM45-F000
Manufacturer:
Dynex Semiconductor
File Size:
316.09 KB
Description:
Igbt chopper module.
* Soft Punch Through Silicon Isolated AlSiC Base with AlN Substrates High Thermal Cycling Capability 10µs Short Circuit Withstand Lead Free construction 10.2kV isolation KEY PARAMETERS V CES V CE(sat)
* (typ) IC (max) I C(PK) (max)
* (measured at the auxiliary terminals) 4500V 2.9V 300A 600A

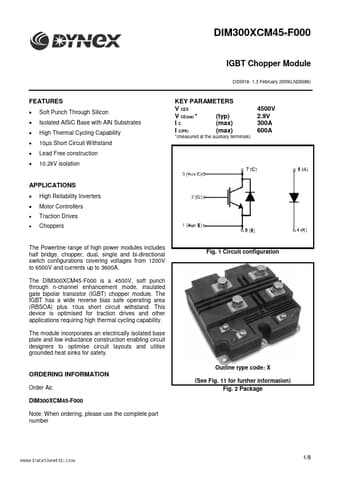

DIM300XCM45-F000 Datasheet (316.09 KB)
DIM300XCM45-F000
Dynex Semiconductor
316.09 KB
Igbt chopper module.
