DS1107SG Rectifier Diode

DS1107SG Description

www.DataSheet4U.com DS1107SG DS1107SG Rectifier Diode Replaces January 2000 version, DS4168-3.0 DS4168-4.0 August 2001 .

DS1107SG Applications

* s Rectification s Freewheel Diode s DC Motor Control s Power Supplies s Welding s Battery Chargers VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage VRRM V Conditions DS1107SG40 4000 DS1107SG39 3900 DS1107SG38 3800 DS1107SG37 3700 DS1107SG36 3600 DS1107SG35 3500 Lower voltage grades avai

📥 Download Datasheet

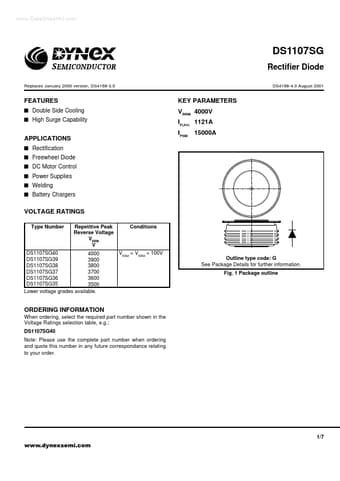

Preview of DS1107SG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS1107SG
Manufacturer
Dynex Semiconductor
File Size
125.06 KB
Datasheet
DS1107SG_DynexSemiconductor.pdf
Description
Rectifier Diode
