DS1100L

3.3V 5-Tap Economy Timing Element

DS1100L Features

* All-Silicon Timing Circuit

* Five Taps Equally Spaced

* Delays are Stable and Precise

* Both Leading- and Trailing-Edge Accuracy

* 3.3V Version of the DS1100

* Low-Power CMOS

* TTL-/CMOS-Compatible

* Vapor-Phase and IR Solderable

* Custom Delays Available

DS1100L General Description

The DS1100L is a 3.3V version of the DS1100. It is characterized for operation over the range 3.0V to 3.6V. The DS1100L series delay lines have five equally spaced taps providing delays from 4ns to 500ns. These devices are offered in surface-mount packages to save PCB area. Low cost and superior rel.

DS1100L Datasheet (540.65 KB)

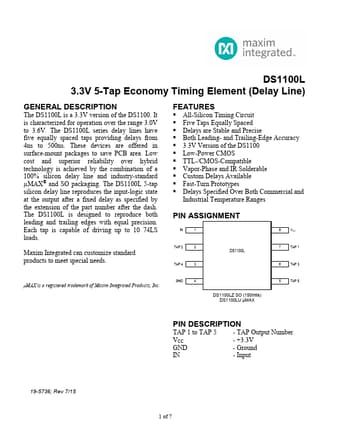

Preview of DS1100L PDF

Datasheet Details

Part number:

DS1100L

Manufacturer:

Maxim Integrated ↗

File Size:

540.65 KB

Description:

3.3v 5-tap economy timing element.
