DS1135L - 3V 3-in-1 High-Speed Silicon Delay Line

Product Overview

Maxim Integrated

Datasheet Details

Part number	DS1135L
Manufacturer	Maxim Integrated
File Size	310.42 KB
Description	3V 3-in-1 High-Speed Silicon Delay Line
Datasheet	DS1135L Datasheet

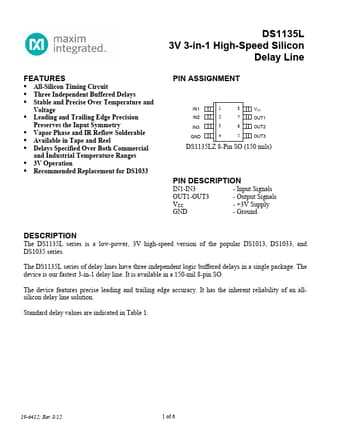

Additional preview pages of the DS1135L datasheet.

Product details

Description

IN1-IN3 - Input Signals OUT1-OUT3 - Output Signals VCC - +3V Supply GND - Ground DESCRIPTION The DS1135L series is a low-power, 3V high-speed version of the popular DS1013, DS1033, and DS1035 series.The DS1135L series of delay lines have three independent logic buffered delays in a single package.The device is our fastest 3-in-1 delay line.It is available in a 150-mil 8-pin SO.The device

Features

All-Silicon Timing Circuit.
Three Independent Buffered Delays.
Stable and Precise Over Temperature and Voltage.
Leading and Trailing Edge Precision Preserves the Input Symmetry.
Vapor Phase and IR Reflow Solderable.
Available in Tape and Reel.
Delays Specified Over Both Commercial and Industrial Temperature Ranges.
3V Operation.
Recommended Replacement for DS1033 DS1135L 3V 3-in-1 High-Speed Silicon Delay Line PIN.
