DS1100

5-Tap Economy Timing Element

Maxim Integrated

DS1100 Features

* All-Silicon Timing Circuit

* Five Taps Equally Spaced

* 5V Operation

* Delays are Stable and Precise

* Both Leading- and Trailing-Edge Accuracy

* Improved Replacement for DS1000

* Low-Power CMOS

* TTL/CMOS-Compatible

* Vapor-Phase, IR, and Wave Solderable

DS1100 General Description

The DS1100 series delay lines have five equally spaced taps providing delays from 4ns to 500ns. These devices are offered in surface-mount packages to save PCB area. Low cost and superior reliability over hybrid technology is achieved by the combination of a 100% silicon delay line and industry-stan.

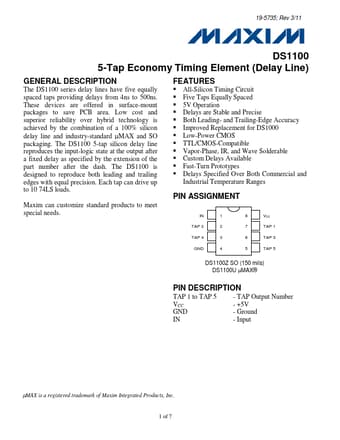

DS1100 Datasheet (130.33 KB)

DS1100 Datasheet Preview — Preview of DS1100 PDF

Datasheet Details

Part number:

DS1100

Manufacturer:

Maxim Integrated ↗

File Size:

130.33 KB

Description:

5-tap economy timing element.
