DS110DF410

Low Power Multi-Rate Quad Channel Retimer

DS110DF410 Features

* 1 Each Channel Independently Locks to Data Rates from 8.5 to 11.3 Gbps and Sub-rates

* Support for Subrates of Divide by 2/4/8

* Fast Lock Operation Based on Protocol-Select Mode

* Low Latency (~300ps)

* Adaptive Equalization up to 34-dB Boost at 5 GHz

DS110DF410 General Description

The DS110DF410 is a four channel retimer with integrated signal conditioning. The device includes a fully adaptive Continuous-Time Linear Equalizer (CTLE), self calibrating 5-tap Decision Feedback Equalizer (DFE), Clock and Data Recovery (CDR), and transmit De-Emphasis (DE) driver to enable data tra.

DS110DF410 Datasheet (1.73 MB)

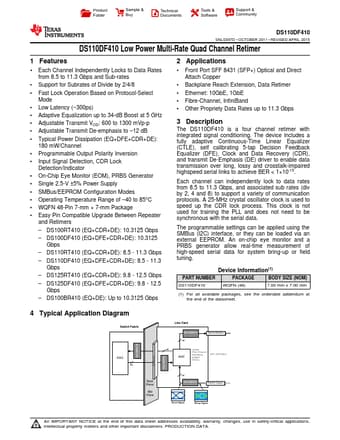

Preview of DS110DF410 PDF

Datasheet Details

Part number:

DS110DF410

Manufacturer:

Texas Instruments ↗

File Size:

1.73 MB

Description:

Low power multi-rate quad channel retimer.
