DS1137 Shielded Drum Core Inductors

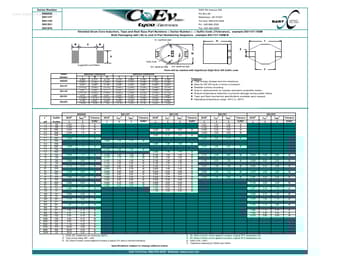

Series Number DS6630 www.DataSheet4U.com DS1137 DS1145 DS1351 DS1976 3003 9th Avenue SW PO Box 50 Watertown, SD 57201 Toll free: 888-978-2638 Ph: 605-886-3326 Fax: 605-886-8995 Shielded Drum Core Inductors, Tape and Reel Easy Part Numbers: ( Series Number ) - ( Suffix Code )(Tolerance), example DS1137-150M Bulk Packaging add (-B) to end of Part Numbering Sequence. example DS1137-150M-B 1st significant digit H Z W L B C B A Suffix Code Suggested Land Pattern 3rd significant digit XXX 2nd.

DS1137 Features

* High energy storage and low resistance. Ideal for DC-DC buck or boost conversion. Reliable surface mounting. Drop-in replacements for industry prevalent competitor series. Robust temperature deflection to prevent damage during solder reflow. Tape and Reel mechanical specifications available upon re
