DFM600XXM45-F000 Datasheet - Dynex

DFM600XXM45-F000, Fast Recovery Diode Module

Replaces DS5915-1.0 DFM600XXM45-F000 Fast Recovery Diode Module DS5915-2 December 2010 (LN27892) .

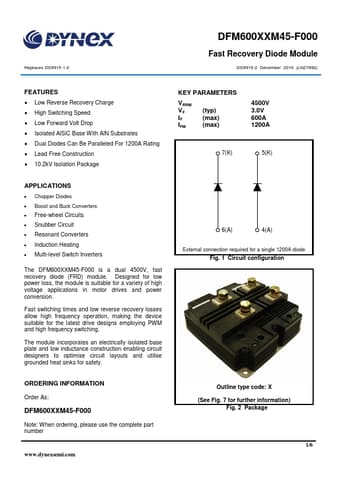

datasheet Preview Page 1 from Datasheet4u.com

DFM600XXM45-F000-Dynex.pdf

DFM600XXM45-F000 Datasheet Preview — Preview of DFM600XXM45-F000 PDF

Datasheet Details

Part number:

DFM600XXM45-F000

Manufacturer:

Dynex

File Size:

222.00 KB

Description:

Fast Recovery Diode Module

Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base With AlN Substrates
* Dual Diodes Can Be Paralleled For 1200A Rating
* Lead Free Construction
* 10.2kV Isolation Package KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max)

Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Snubber Circuit
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM600XXM45-F000 is a dual 4500V, fast recovery diode (FRD) module. Designed for low power loss, the module is
