DFM600FXM18-A000, Fast Recovery Diode Module

Replaces DS5438-1.4 DFM600FXM18-A000 Fast Recovery Diode Module DS5438-2 April 2010 (LN26762) .

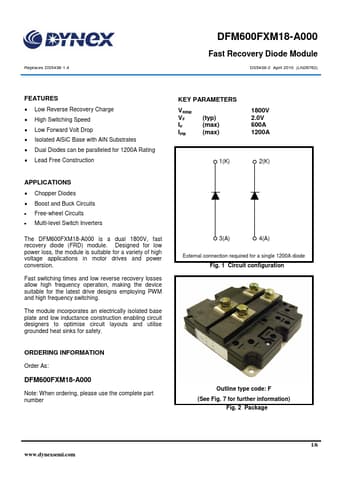

datasheet Preview Page 1 from Datasheet4u.com

DFM600FXM18-A000_DynexSemiconductor.pdf

DFM600FXM18-A000 Datasheet Preview — Preview of DFM600FXM18-A000 PDF

Datasheet Details

Part number:

DFM600FXM18-A000

Manufacturer:

Dynex

File Size:

220.15 KB

Description:

Fast Recovery Diode Module

Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base with AlN Substrates
* Dual Diodes can be paralleled for 1200A Rating
* Lead Free Construction KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 1800V 2.0V 600A 1200A 1(K) 2(K

Applications

* Chopper Diodes
* Boost and Buck Circuits
* Free-wheel Circuits
* Multi-level Switch Inverters The DFM600FXM18-A000 is a dual 1800V, fast recovery diode (FRD) module. Designed for low power loss, the module is suitable for a variety of high voltage applications in motor drives and p
