DFM600NXM45-F000 Fast Recovery Diode Module

Dynex

Description

Replaces DS5882-1.0 DFM600NXM45-F000 Fast Recovery Diode Module DS5882-2 April 2011 (LN28309) .

📥 Download Datasheet

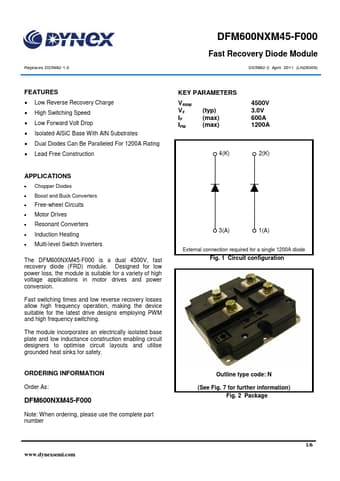

DFM600NXM45-F000 Datasheet Preview — Preview of DFM600NXM45-F000 PDF

Datasheet Specifications

Part number: DFM600NXM45-F000
Manufacturer: Dynex
File Size: 222.50 KB
Datasheet: DFM600NXM45-F000-Dynex.pdf
Description: Fast Recovery Diode Module

Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base With AlN Substrates
* Dual Diodes Can Be Paralleled For 1200A Rating
* Lead Free Construction KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 4500V 3.0V 600A 1200A 4(K) 2(K

Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Motor Drives
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM600NXM45-F000 is a dual 4500V, fast recovery diode (FRD) module. Designed for low power loss, the module is su
