DIM500GCM33-TL000

IGBT

DIM500GCM33-TL000 Features

* Low VCE(sat) Device

* 10µs Short Circuit Withstand

* High Thermal Cycling Capability

* High Current Density Enhanced DMOS SPT

* Isolated AlSiC Base With AlN Substrates APPLICATIONS

* High Reliability Inverters

* Motor Controllers

* Traction Drives

* Choppers The

DIM500GCM33-TL000 Datasheet (359.64 KB)

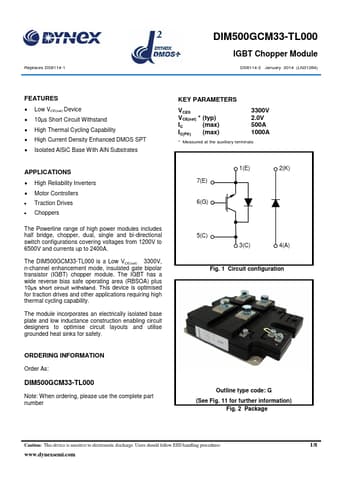

Preview of DIM500GCM33-TL000 PDF

Datasheet Details

Part number:

DIM500GCM33-TL000

Manufacturer:

Dynex

File Size:

359.64 KB

Description:

Igbt.
