DIM500GDM33-TS000 Dual Switch IGBT Module

Dynex

Description

Replaces DS6097-2 DIM500GDM33-TS000 Dual Switch IGBT Module DS6097-3 September 2014 (LN31961) .

📥 Download Datasheet

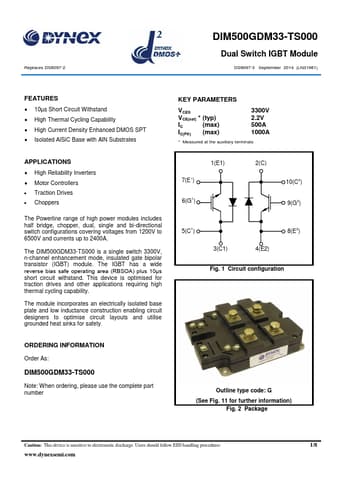

DIM500GDM33-TS000 Datasheet Preview — Preview of DIM500GDM33-TS000 PDF

Datasheet Specifications

Part number: DIM500GDM33-TS000
Manufacturer: Dynex
File Size: 358.15 KB
Datasheet: DIM500GDM33-TS000-Dynex.pdf
Description: Dual Switch IGBT Module

Features

* 10µs Short Circuit Withstand
* High Thermal Cycling Capability
* High Current Density Enhanced DMOS SPT
* Isolated AlSiC Base with AlN Substrates KEY PARAMETERS VCES VCE(sat)
* (typ) IC (max) IC(PK) (max) 3300V 2.2V 500A 1000A
* Measured at the auxiliary terminals APPL

Applications

* High Reliability Inverters
* Motor Controllers
* Traction Drives
* Choppers The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up to 2400A. The DIM500GDM33
