XTR54000 High Temperature Multi-Function Logic Gates

XTR54000 Description

XTR54000 High Temperature Multi-Function Logic Gates Data Sheet Rev 3 * August 2021 (DS-00443-13) PRODUCTION XTRPPPPP YYWWANN DIP16 XTR540.
XTR54000 is a configurable logic device able to provide four different functions from the same silicon part.

XTR54000 Features

* Operational beyond the -60°C to +230°C temperature range.
* Supply voltage from 2.8V to 5.5V.
* Schmitt trigger inputs.
* Compatible with NAND, NOR, XOR, INVERTER functions of the standard 54HC family.
* Latch-up free.
* Ruggedized SMT and thru-hole

XTR54000 Applications

* Reliability-critical, Automotive, Aeronautics & Aerospace, Downhole.
* Combinatorial logic circuits. PRODUCT HIGHLIGHT 1A VDD 1B 4B 4A 1Y 2A 4Y 2B 3B 3A 2Y GND 3Y SET_0 SET_1 SET_0=0 / SET_1=0 Quad Schmitt Trigger 2-input NAND 1A VDD 1B 4B 4A 1Y 2A 4Y 2B 3B 3A 2Y

📥 Download Datasheet

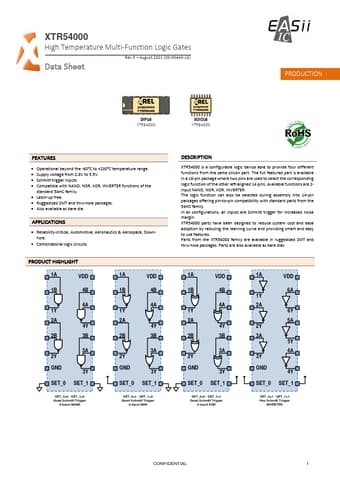

Preview of XTR54000 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XTR54000
Manufacturer
EASii
File Size
508.93 KB
Datasheet
XTR54000-EASii.pdf
Description
High Temperature Multi-Function Logic Gates
