2CL74, 2CL71 Datasheet - EDI

2CL74 (2CL69 - 2CL77) LOW CURRENT SILICON RECTIFIER DIODES

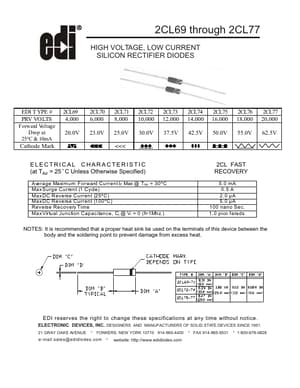

www.DataSheet.co.kr 2CL69 through 2CL77 HIGH VOLTAGE, LOW CURRENT SILICON RECTIFIER DIODES EDI T YPE # PRV VOLTS Forward V oltage Drop at 25°C & 10mA 2CL69 4,000 20.0V 2CL70 6,000 23.0V 2CL71 8,000 25.0V 2CL72 10,000 30.0V 2CL73 12,000 37.5V 2CL74 14,000 42.5V 2CL75 16,000 50.0V 2CL76 18,000 55.0V 2CL77 20,000 62.5V Cathode Mark <<< 2CL FAST RECOVERY 5.0 mA 0.5 A 2.0 µA 5.0 µA 100 nano Sec. 1.0 pico farads ELECTRICAL CHARACTERISTIC (at TAir = 25°C Unless Otherwise Specified) Averag.

2CL71_EDI.pdf

2CL74 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2CL74, 2CL71. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2CL74, 2CL71

Manufacturer:

EDI

File Size:

109.89 KB

Description:

(2cl69 - 2cl77) low current silicon rectifier diodes.

Note:

This datasheet PDF includes multiple part numbers: 2CL74, 2CL71.
Please refer to the document for exact specifications by model.
