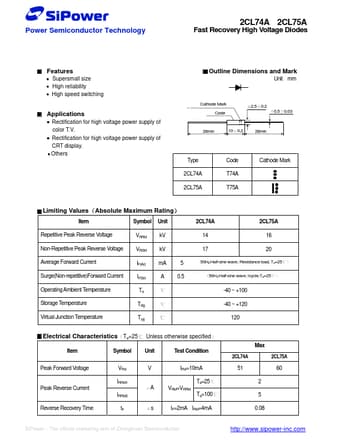

Power Semiconductor Technology 2CL74A 2CL75A Fast Recovery High Voltage Diodes Features Supersmall size High reliability High speed switching Applications Rectification for high voltage power supply of color T.V. Rectification for high voltage power supply of CRT display. Others Outline Dimensions and Mark Unit mm Cathode Mark Code 2.5 0.2 0.5 0.03 26min 10 0.2 26min Type 2CL74A 2CL75A Code T74A T75A Cathode Mark Limiting Values Absolute Maximum Rating Item Symbol Unit Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Average Forward Current Surge(Non-repetitive)Forward Current Operating Ambient Temperature Storage Temperature Virtual Junction Temperature VRRM VRSM IF(AV) IFSM Ta Tstg T(vj) kV kV mA 5 A 0.
