1N4005G, 1N4001G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

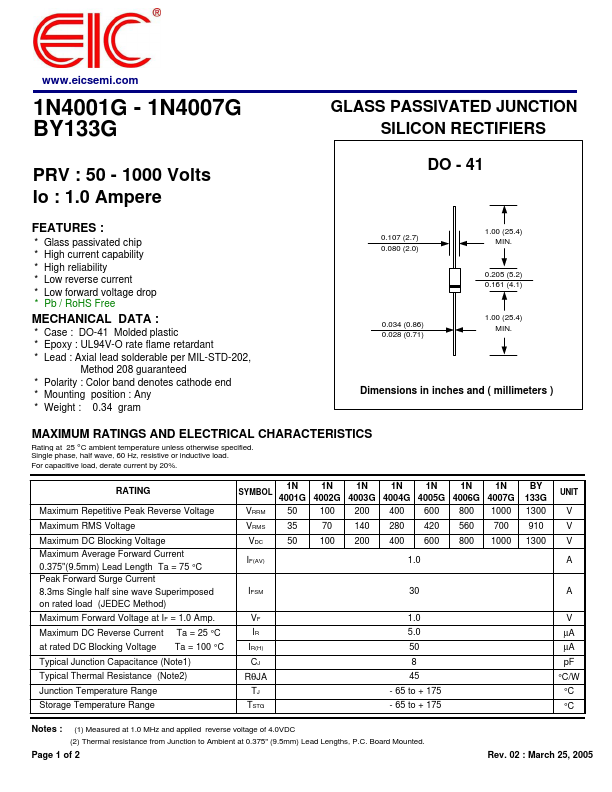

📥 Download Datasheet Datasheet Preview Page 1

Description

www.eicsemi.com 1N4001G - 1N4007G BY133G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere DO - 41 .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4005G, 1N4001G. Please refer to the document for exact specifications by model.

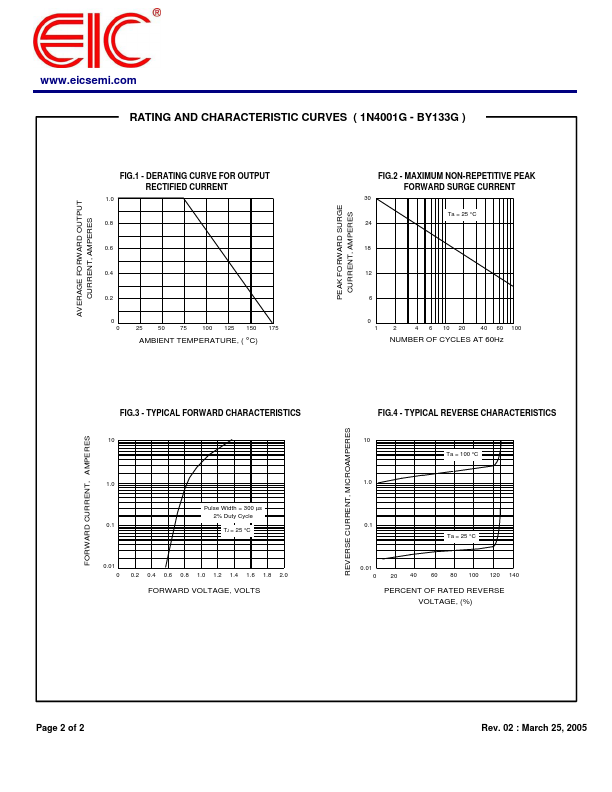

datasheet Preview Page 2

Datasheet Specifications

Part number
1N4005G, 1N4001G
Manufacturer
EIC
File Size
23.92 KB
Datasheet
1N4001G-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N4005G, 1N4001G.
Please refer to the document for exact specifications by model.

Features

* :
* Glass passivated chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-S
