1SR35-400, 1SR35-100 SILICON RECTIFIER DIODES

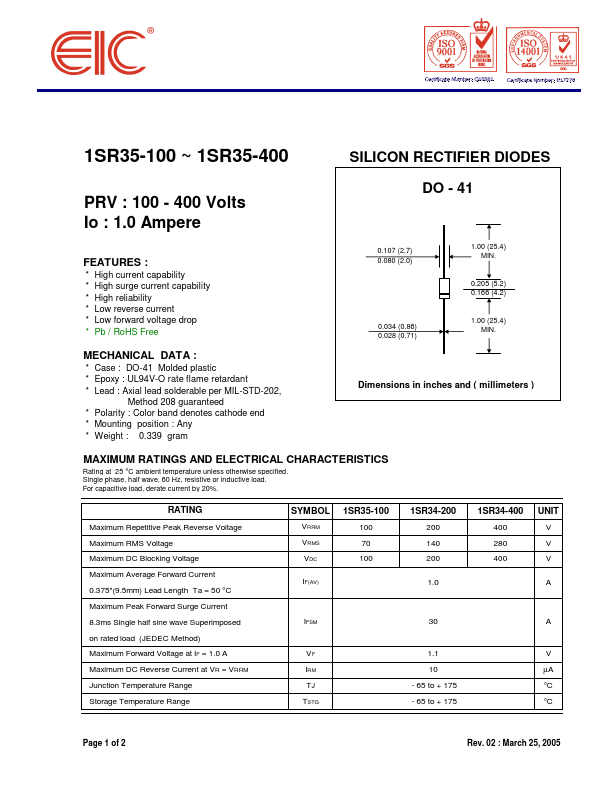

📥 Download Datasheet  Datasheet Preview Page 1

Description

1SR35-100 ~ 1SR35-400 SILICON RECTIFIER DIODES PRV : 100 - 400 Volts Io : 1.0 Ampere DO - 41 .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SR35-400, 1SR35-100. Please refer to the document for exact specifications by model.

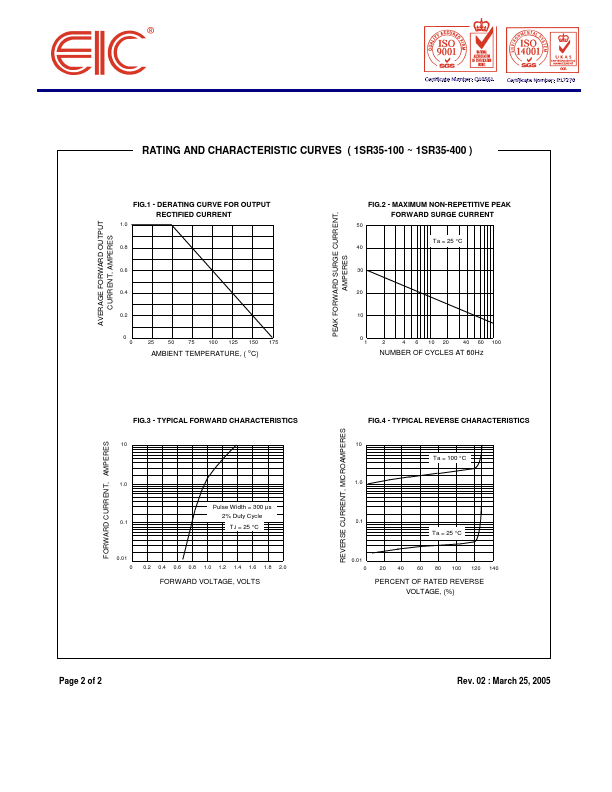

datasheet Preview Page 2

Datasheet Specifications

Part number
1SR35-400, 1SR35-100
Manufacturer
EIC
File Size
27.38 KB
Datasheet
1SR35-100-EIC.pdf
Description
SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1SR35-400, 1SR35-100.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable p
