1SS131 - HIGH SPEED SWITCHING DIODE

Datasheet Summary

Features

  • :.
  • High switching speed: max. 4 ns.
  • Continuous reverse voltage:max. 80 V.
  • Repetitive peak reverse voltage:max. 90 V.
  • Pb / RoHS Free HIGH SPEED.

📥 Download Datasheet

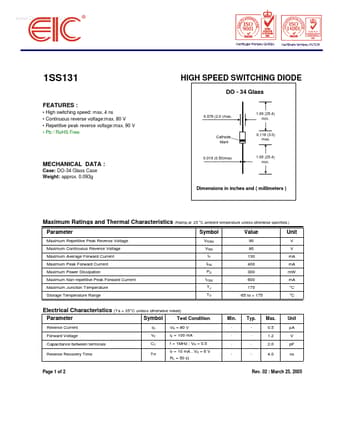

Datasheet preview – 1SS131

Datasheet Details

Part number 1SS131
Manufacturer EIC
File Size 57.14 KB
Description HIGH SPEED SWITCHING DIODE
Datasheet download datasheet 1SS131 Datasheet
Additional preview pages of the 1SS131 datasheet.

📁 Similar Datasheet

  • 1SS133 - Switching diode (Rohm)
  • 1SS133 - SWITCHING DIODES (Leshan Radio Company)
  • 1SS133 - High Speed Switching Diode (MCC)
  • 1SS133 - Silicon Epitaxial Planar Switching Diode (JGD)
  • 1SS133 - Silicon Epitaxial Planar Switching Diode (PACO)
  • 1SS133M - Hermetically Sealed Glass Switching Diodes (Taiwan Semiconductor)
  • 1SS133S - Silicon Epitaxial Planar Switching Diode (JGD)
  • 1SS136 - High Speed Switching Diode (MCC)
  • 1SS139 - DIODE (Rohm)
  • 1SS13C1 - (1SS13C1 - 1SS15C1) high speed low noise switching diode (HUAGAO)
Other Datasheets by EIC
  • 1SS130 - HIGH SPEED SWITCHING DIODE
  • 1SS132 - HIGH SPEED SWITCHING DIODE
  • 1SS133 - HIGH SPEED SWITCHING DIODE
  • 1SS106 - SCHOTTKY BARRIER DIODES
  • 1SS108 - SCHOTTKY BARRIER DIODES
  • 1SS120 - HIGH SPEED SWITCHING DIODE
  • 1SS165 - SCHOTTKY BARRIER DIODE
  • 1SS166 - SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 1SS131 FEATURES : • High switching speed: max. 4 ns • Continuous reverse voltage:max. 80 V • Repetitive peak reverse voltage:max. 90 V • Pb / RoHS Free HIGH SPEED SWITCHING DIODE DO - 34 Glass 0.078 (2.0 )max. 1.00 (25.4) min. Cathode Mark 0.118 (3.0) max. 0.019 (0.50)max. MECHANICAL DATA : Case: DO-34 Glass Case Weight: approx. 0.093g 1.00 (25.4) min.
