MBR4045PT, MBR4035PT SCHOTTKY BARRIER RECTIFIER DIODE

MBR4045PT Description

MBR4035PT SERIES PRV : 35~45 Volts Io : 40 Amperes .

MBR4045PT Features

* :
* High current capability
* Low power loss, high efficiency
* High surge capacity
* Pb / RoHS Free MECHANICAL DATA :
* Case : TO-247AD Molded plastic
* Polarity : As marked on the body
* Mounting position : Any
* Weight : 5.6 grams SCHOTTKY BARRIER RECTIFIER DIODE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR4045PT, MBR4035PT. Please refer to the document for exact specifications by model.

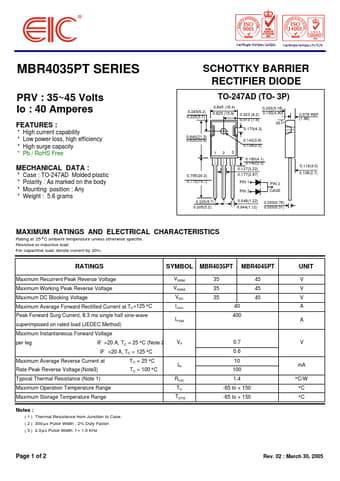

datasheet Preview Page 2

Datasheet Details

Part number
MBR4045PT, MBR4035PT
Manufacturer
EIC
File Size
39.38 KB
Datasheet
MBR4035PT-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODE
Note
This datasheet PDF includes multiple part numbers: MBR4045PT, MBR4035PT.
Please refer to the document for exact specifications by model.
