ELM1085SG, ELM1085xG Datasheet - ELM

ELM1085SG - Bipolar 3A LDO Voltage regulator

ELM1085xG is positive and bipolar LDO three terminal voltage regulator with 3A output current capability.

This series includes thermal shutdown protection and short circuit current limiter.

ELM1085 series is available in fixed version (ELM1085xG-3.3 VOUT:3.3V) and adjustable version (ELM1085xG: Vout=

ELM1085SG Features

* Output voltage range (fixed) (adj.)

* Line regulation

* Load regulation

* LDO voltage

* Package : 3.3V : 1.27V to 5.55V : Typ.0.5% : Typ.0.5% : 1.3V typical at up to 3A : TO-252, TO-263-2, TO-263-3

* Application

* SC

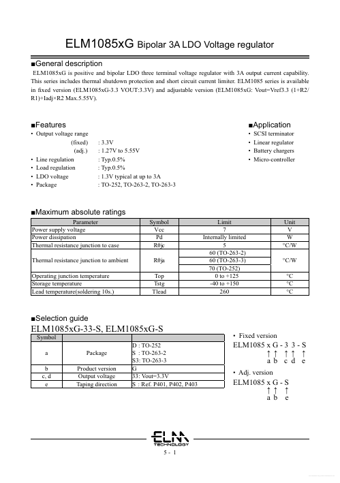

ELM1085xG-ELM.pdf

This datasheet PDF includes multiple part numbers: ELM1085SG, ELM1085xG. Please refer to the document for exact specifications by model.
ELM1085SG Datasheet Preview Page 2 ELM1085SG Datasheet Preview Page 3

Datasheet Details

Part number:

ELM1085SG, ELM1085xG

Manufacturer:

ELM

File Size:

97.98 KB

Description:

Bipolar 3a ldo voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: ELM1085SG, ELM1085xG.
Please refer to the document for exact specifications by model.
