ELM1085xG

Bipolar 3A LDO Voltage regulator

ELM1085xG Features

* Output voltage range (fixed) (adj.)

* Line regulation

* Load regulation

* LDO voltage

* Package : 3.3V : 1.27V to 5.55V : Typ.0.5% : Typ.0.5% : 1.3V typical at up to 3A : TO-252, TO-263-2, TO-263-3

* Application

* SC

ELM1085xG General Description

ELM1085xG is positive and bipolar LDO three terminal voltage regulator with 3A output current capability. This series includes thermal shutdown protection and short circuit current limiter. ELM1085 series is available in fixed version (ELM1085xG-3.3 VOUT:3.3V) and adjustable version (ELM1085xG: Vout=.

ELM1085xG Datasheet (97.98 KB)

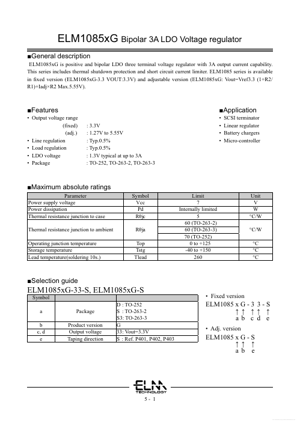

Preview of ELM1085xG PDF

Datasheet Details

Part number:

ELM1085xG

Manufacturer:

ELM

File Size:

97.98 KB

Description:

Bipolar 3a ldo voltage regulator.
