ELM1085DG - Bipolar 3A LDO Voltage regulator

ELM1085DG Description

ELM1085DG Bipolar 3A LDO Voltage regulator *General .
ELM1085DG is positive and bipolar LDO three terminal voltage regulator with 3A output current capability.

ELM1085DG Features

* Output voltage range (adj. ) : 1.27V to 5.55V Line regulation : Typ.0.5% Load regulation : Typ.0.5% LDO voltage : 1.3V typical at up to 3A Package : TO-252

📥 Download Datasheet

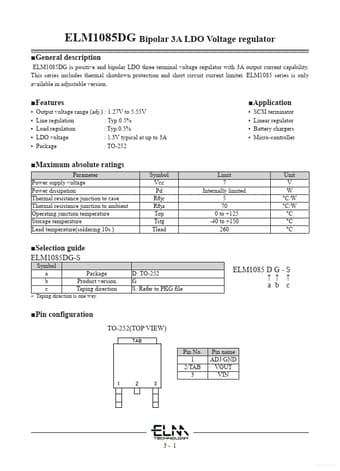

Preview of ELM1085DG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ELM1085DG
Manufacturer
ELM
File Size
309.68 KB
Datasheet
ELM1085DG-ELM.pdf
Description
Bipolar 3A LDO Voltage regulator
