ELM0431BA Datasheet - ELM

2.5V Programable shunt regulator

ELM0431BA Features

* Low cost solution

* Shunt capacity

* Output voltage range(adj.)

* Output impedance

* Trimmed band-gap design

* Package : 100mA : Set up to 29V : Typ.0.25Ω : 1% : SOT-23

* Application

* Linear regulator

* Precision voltage referen

ELM0431BA General Description

ELM0431BA is three-terminal adjustable shunt regulator utilizing an accurate 2.5V band-gap reference. The output voltage can be set to any value between 2.5V (Vref) to 29V with two external resistors as shown in the typical application circuit. The device exhibit a wide operating current range of 0..

ELM0431BA Datasheet (291.10 KB)

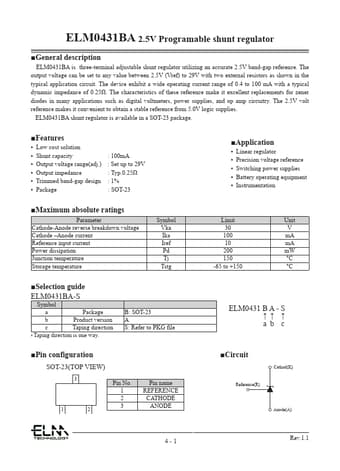

ELM0431BA Datasheet Preview — Preview of ELM0431BA PDF

Datasheet Details

Part number:

ELM0431BA

Manufacturer:

ELM

File Size:

291.10 KB

Description:

2.5v programable shunt regulator.
