Datasheet Details
- Part number
- EM6153
- Manufacturer
- EM Microelectronic
- File Size
- 513.28 KB
- Datasheet
- EM6153_EMMicroelectronic.pdf
- Description
- 5V Automotive Regulator
EM6153 Description

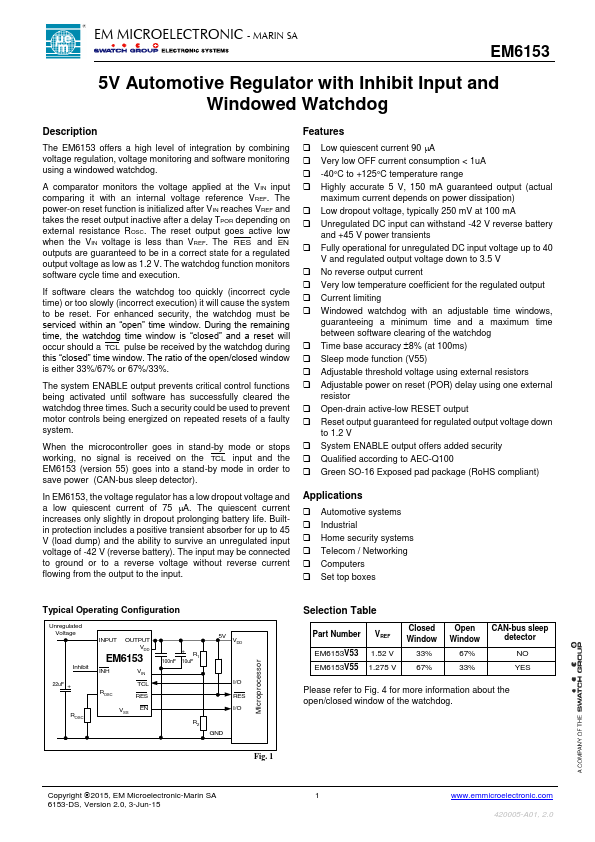

EM MICROELECTRONIC - MARIN SA EM6153 5V Automotive Regulator with Inhibit Input and Windowed Watchdog .
The EM6153 offers a high level of integration by combining voltage regulation, voltage monitoring and software monitoring using a windowed watchdog.
EM6153 Features
* Low quiescent current 90 A Very low OFF current consumption < 1uA -40°C to +125°C temperature range Highly accurate 5 V, 150 mA guaranteed output (actual
maximum current depends on power dissipation) Low dropout voltage, typically 250 mV at 100 mA Unregulated DC input can withstand -42
EM6153 Applications
* Automotive systems Industrial Home security systems Telecom / Networking Computers Set top boxes

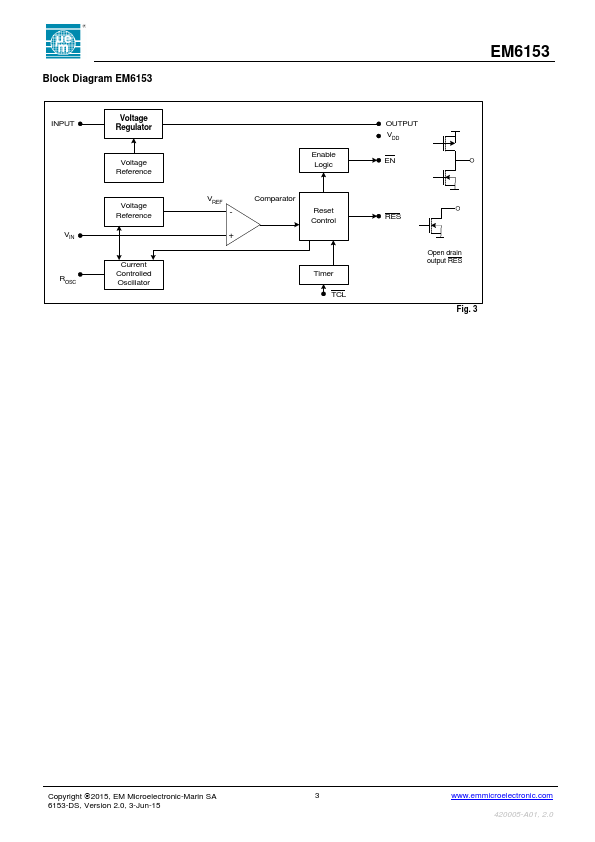

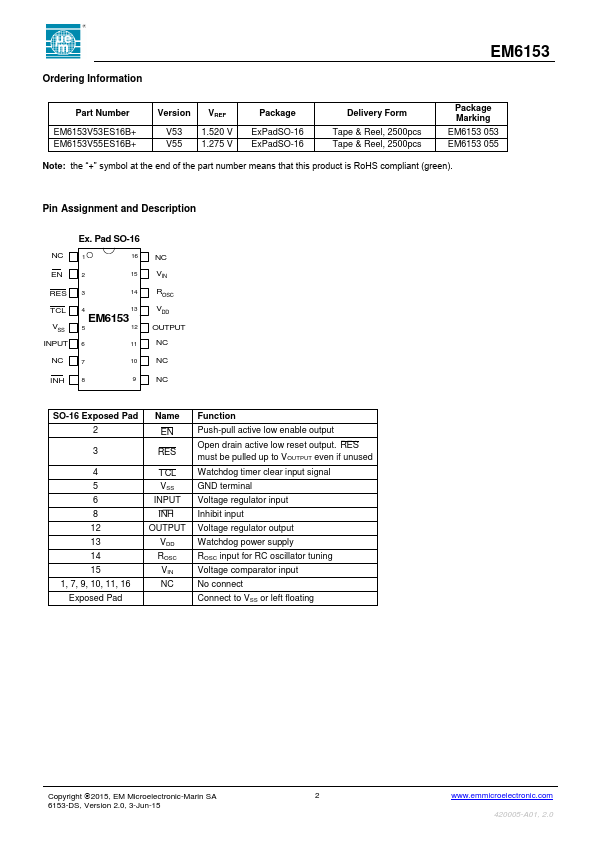

Microprocessor
Typical Operating Configuration
Unregulated Voltage
Inhibit 22uF +
ROSC
INPUT OUTPUT VDD
EM6153
INH
VIN
ROSC
TCL RES
VSS EN
+ R1
100nF 10uF
5V VDD
I/O RES I/O
R2 GN
