B65804 Core and Accessories

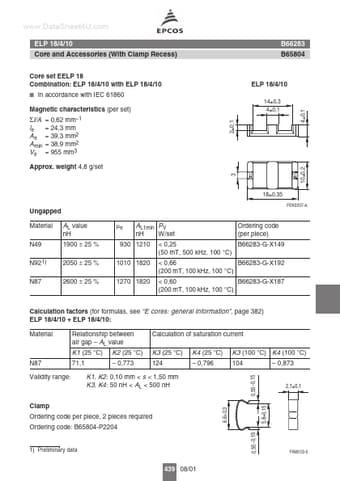

www.DataSheet4U.com ELP 18/4/10 Core and Accessories (With Clamp Recess) Core set EELP 18 Combination: ELP 18/4/10 with ELP 18/4/10 I In accordance with IEC 61860 B66283 B65804 ELP 18/4/10 14±0,3 4±0,1 2±0,1 Σl/A le Ae A min Ve = 0,62 mm 1 = 24,3 mm = 39,3 mm2 = 38,9 mm2 = 955 mm3 18±0,35 FEK0337-A Ungapped Material N49 N92 1) N87 A L value nH 1900 ± 25 % 2050 ± 25 % 2600 ± 25 % µe A L1min P V nH W/set Ordering code (per piece) 930 1210 1010 1820 1270 1820 < 0,25 B66283-G-X149.
