B65815-P Datasheet - EPCOS

B65815-P RM 12 Low Profile

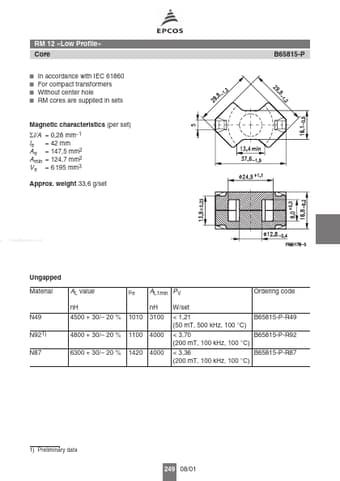

RM 12 »Low Profile« Core I I I I B65815-P In accordance with IEC 61860 For compact transformers Without center hole RM cores are supplied in sets Magnetic characteristics (per set) Σl/A le Ae A min Ve = 0,28 mm 1 = 42 mm = 147,5 mm2 = 124,7 mm2 = 6 195 mm3 Approx. weight 33,6 g/set www.DataSheet4U.com Ungapped Material AL value nH N49 N92 1) N87 4500 + 30/ 20 % 4800 + 30/ 20 % 6300 + 30/ 20 % 1010 1100 1420 µe AL1min P V nH 3100 4000 4000 W/set < 1,21.
