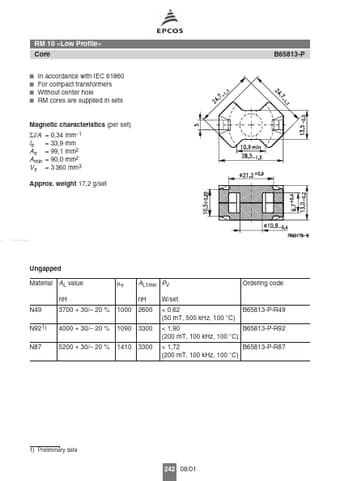

RM 10 »Low Profile« Core
I I I I
B65813-P
In accordance with IEC 61860 For compact transformers Without center hole RM cores are supplied in sets
Magnetic characteristics (per set)
Σl/A le Ae A min Ve
= 0,34 mm–1 = 33,9 mm = 99,1 mm2 = 90,0 mm2 = 3 360 mm3
Approx. weight 17,2 g/set
www.DataSheet4U.com
Ungapped Material A L value nH N49 N92 1) N87 3700 + 30/– 20 % 4000 + 30/– 20 % 5200 + 30/– 20 % 1000 1090 1410
µe
A L1min PV nH 2600 3300 3300 W/set < 0,62 (50 mT, 500 kHz, 100 °C)
Ordering code
B65813-P-R49
B65813-P-R92 < 1,90 (200 mT, 100 kHz, 100 °C) < 1,72 B65813-P-R87 (200 mT, 100 kHz, 100 °C)
1) Preliminary data
242 08/01
