B65807-P RM cores are supplied

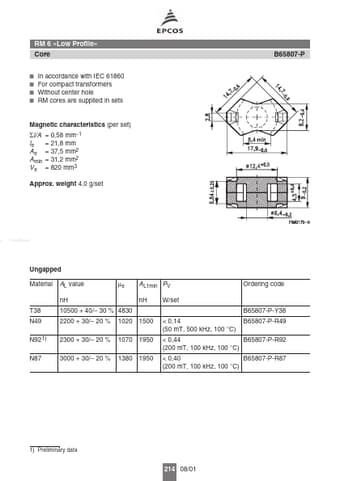

RM 6 »Low Profile« Core I I I I B65807-P In accordance with IEC 61860 For compact transformers Without center hole RM cores are supplied in sets Magnetic characteristics (per set) Σl/A le Ae A min Ve = 0,58 mm 1 = 21,8 mm = 37,5 mm2 = 31,2 mm2 = 820 mm3 Approx. weight 4,0 g/set www.DataSheet4U.com Ungapped Material AL value nH T38 N49 N92 1) N87 10500 + 40/ 30 % 4830 2200 + 30/ 20 % 2300 + 30/ 20 % 3000 + 30/ 20 % 1020 1070 1380 1500 1950 1950 .
