EMP8165

2A Ultra Low Dropout Voltage Regulator

EMP8165 Features

* An internal soft-start or adjustable soft-start by SS pin can minimizes capacitive inrush current on the input power source during start-up. PG stay low until the output reaches 92% of value that is settled during start-up. Typical Application Features  Input Voltage Range：+1.0V to +5.5V  Maximu

EMP8165 General Description

The EMP8165/A series can drive 2A of continuous output loading and provide a good performance with a typical dropout voltage as 185mV through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN. The EMP8165/A series are availab.

EMP8165 Datasheet (968.65 KB)

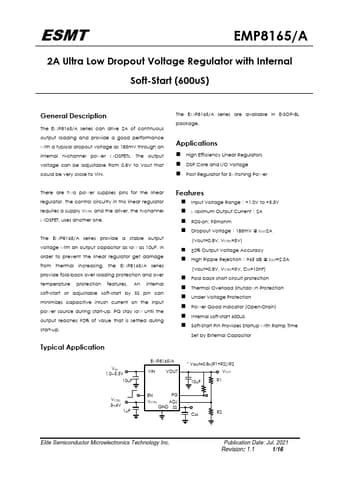

Preview of EMP8165 PDF

Datasheet Details

Part number:

EMP8165

Manufacturer:

ESMT

File Size:

968.65 KB

Description:

2a ultra low dropout voltage regulator.
