EMP8110

1.5A Fixed Voltage LDO Linear Regulator

EMP8110 Features

* include short-circuit Features           Operating Voltage Range:+2.5V to +6.5V Output Voltages:+1.2V to +4.5V (0.1V Step) Maximum Output Current:1.5A Dropout Voltage:570mV @ 1.5A(Vout=1.8V) Low Current Consumption:65µA (Typ.) ±2% Output Voltage Accuracy Low ESR Capacitor Compatible High

EMP8110 Datasheet (329.79 KB)

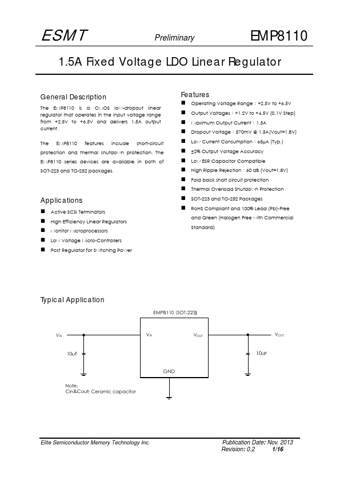

Preview of EMP8110 PDF

Datasheet Details

Part number:

EMP8110

Manufacturer:

Elite Semiconductor

File Size:

329.79 KB

Description:

1.5a fixed voltage ldo linear regulator.
