EMP19K03HPC Datasheet, Transistor, Excelliance MOS

PDF File Details

Part number:

EMP19K03HPC

Manufacturer:

Excelliance MOS

File Size:

755.34kb

Download:

📄 Datasheet

Description:

Dual n-channel logic level enhancement mode field effect transistor. Q1 Q2 BVDSS 30V 30V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 6.6mΩ 2.4mΩ 8.8mΩ 3.4mΩ ID @TC=25℃ 47.0A 93.0A ID @TA=25℃

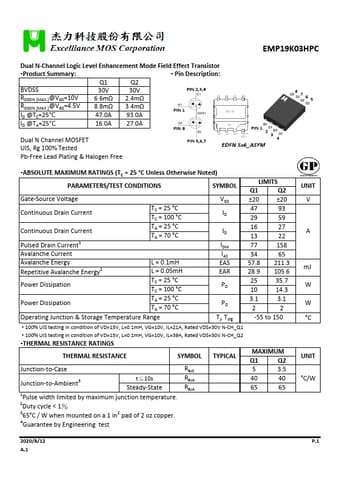

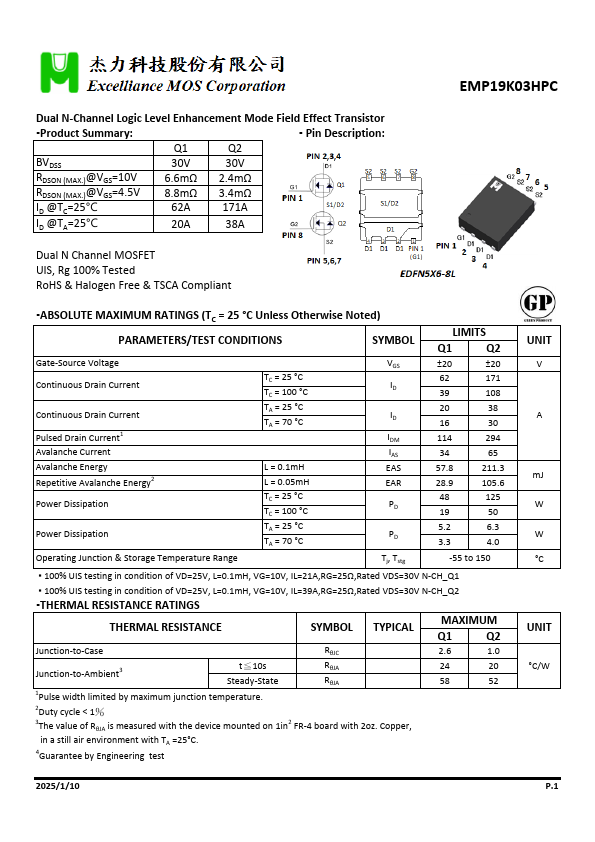

Datasheet Preview: EMP19K03HPC 📥 Download PDF (755.34kb)

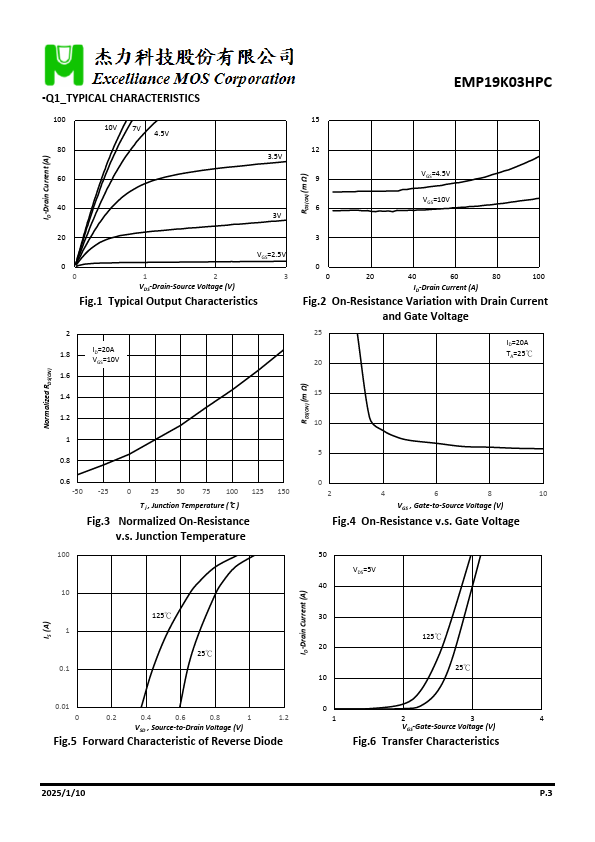

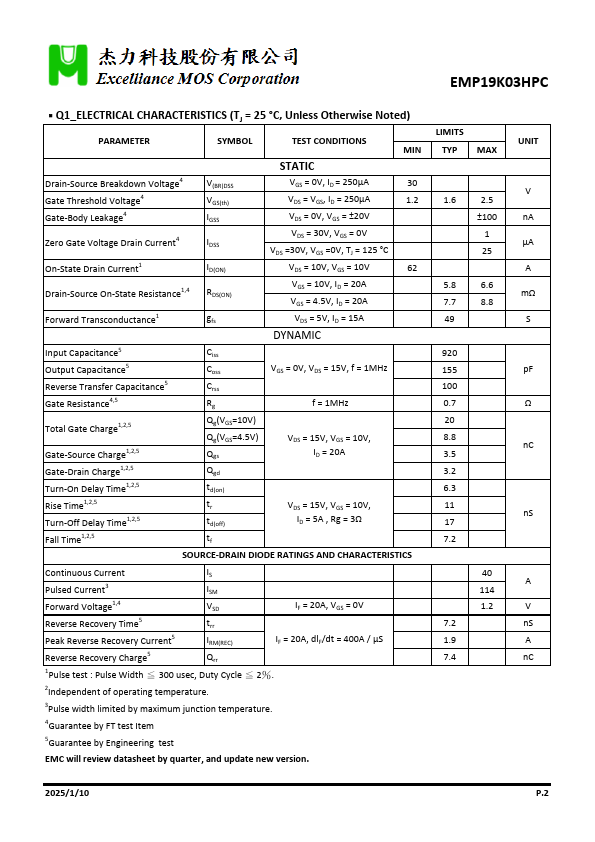

Page 2 of EMP19K03HPC Page 3 of EMP19K03HPC
