EMP8046 - 50mA Ultra-Low Quiescent Current LDO Linear Regulator

EMP8046 Description

ESMT/EMP Preliminary EMP8046 50mA Ultra-Low Quiescent Current LDO Linear Regulator General .
The EMP8046 is a positive voltage regulator with high accuracy output voltage and ultra-low quiescent current which is typically 1.

EMP8046 Features

* g g g g g g Operating voltages range: 2.5V to 18V Maximum output current: 100mA Low dropout: 800mV @ 50mA ±2% output voltage tolerance Low ESR capacitor compatible RoHS compliant and 100% Lead(Pb)-free and green (halogen free with commercial standard) The EMP8046 has been designed to be used with

EMP8046 Applications

* g g g g g bandgap voltage Battery power equipments Portable communication devices Precision voltage references Hand-Held electronics Wireless communication systems The EMP8046 contains a reference, an error amplifier, a P-channel pass transistor, and a resistor-divider for setting output voltag

📥 Download Datasheet

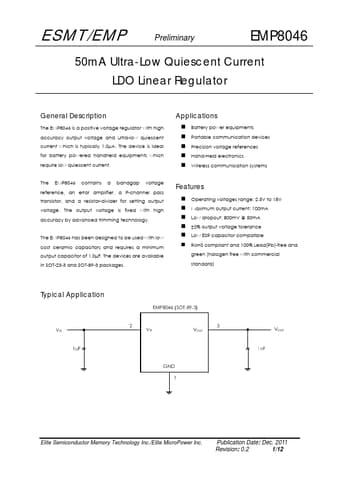

Preview of EMP8046 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EMP8046
Manufacturer
Elite Semiconductor
File Size
245.85 KB
Datasheet
EMP8046-EliteSemiconductor.pdf
Description
50mA Ultra-Low Quiescent Current LDO Linear Regulator
