ETA1660 High Efficiency Synchronous Step-Down Converter

ETA1660 Description

ETA1660 18V, 5A, High Efficiency Synchronous Step-Down Converter in DFN2x2-6 .
FEATURES ETA1660 is a wide input range, high efficiency and high. Wide Input Range: 4.

ETA1660 Features

* ETA1660 is a wide input range, high efficiency and high
* Wide Input Range: 4.5V-18V frequency DC to DC step-down switching regulator,
* Adaptive COT Control capable of delivering up to 5A of output current.
* Ultra-Fast Load Transient Response It adopts an Adaptive COT control sche

ETA1660 Applications

* ETA1660 is available in a DFN2x2-6 package.
* 5G CPE
* Set Top Box
* LCD TV TYPICAL APPLICATION INPUT 12V Cin ENABLE INPUT 10uF Cin 100nF 100nF 6 BST 3 IN SW 2 ETA1660 5 EN FB 4 GND 1 2.2uH Cff 47pF R1 optional 37.5 K R2 12 K OUTPUT 3.3V Cout 2
* 22uF ORDERING INFORM

📥 Download Datasheet

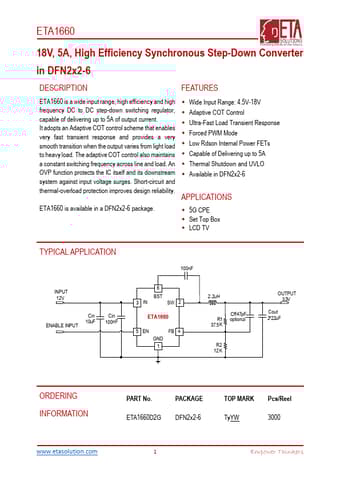

Preview of ETA1660 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ETA1660
Manufacturer
ETA
File Size
553.83 KB
Datasheet
ETA1660-ETA.pdf
Description
High Efficiency Synchronous Step-Down Converter
