ETA1663, High Efficiency Synchronous Step-Down Converter

ETA1663 18V, 4A, High Efficiency Synchronous Step-Down Converter in SOT563 .
FEATURES ETA1663 is a wide input range, high efficiency and. Wide Input Range: 4. Adap.

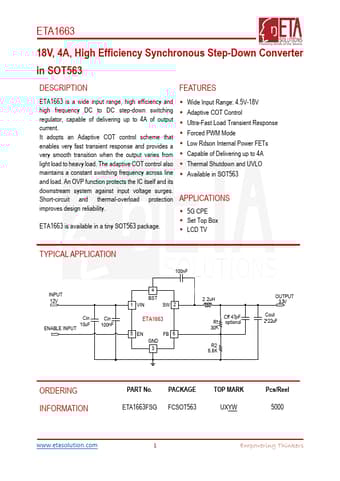

datasheet Preview Page 1 from Datasheet4u.com

ETA1663-ETA.pdf

ETA1663 Datasheet Preview — Preview of ETA1663 PDF

Datasheet Details

Part number:

ETA1663

Manufacturer:

ETA

File Size:

454.46 KB

Description:

High Efficiency Synchronous Step-Down Converter

Features

* ETA1663 is a wide input range, high efficiency and
* Wide Input Range: 4.5V-18V high frequency DC to DC step-down switching
* Adaptive COT Control regulator, capable of delivering up to 4A of output
* Ultra-Fast Load Transient Response current. It adopts an Adaptive COT control schem

Applications

* improves design reliability.
* 5G CPE ETA1663 is available in a tiny SOT563 package.
* Set Top Box
* LCD TV TYPICAL APPLICATION 100nF INPUT 12V Cin ENABLE INPUT 10uF Cin 100nF 4 BST 1 VIN SW 2 ETA1663 5 EN FB 6 GND 3 2.2uH Cff 47pF R1 optional 30K R2 6.8K OUTPUT 3.3V C
