ETA3001 Inductive Cell Balancer

ETA3001 Description

ETA3001 Inductive Cell Balancer IC with Balancing Current Up to 2A .
FEATURES ETA3001 is an inductive cell balancer.

ETA3001 Features

* ETA3001 is an inductive cell balancer. Unlike conventional passive balancing technique, ETA3001 utilizes a control scheme with an inductor to shuffle currents between two cells until the cells are balanced. Due to the switching nature, the heat and power dissipation generated in conventional linear

ETA3001 Applications

* Multi-cells System
* Battery Pack
* Portable Equipment and Instrumentation
* Battery Backup Systems
* E-Cigarette ETA3001 is available in DFN2x2-8 package. TYPICAL APPLICATION 1 BATP HGATE 2 10uF Li+ TVS Battery 10nF BIAS 6 optional 10uF ETA3001 SW 3 Rs 1uH LGATE

📥 Download Datasheet

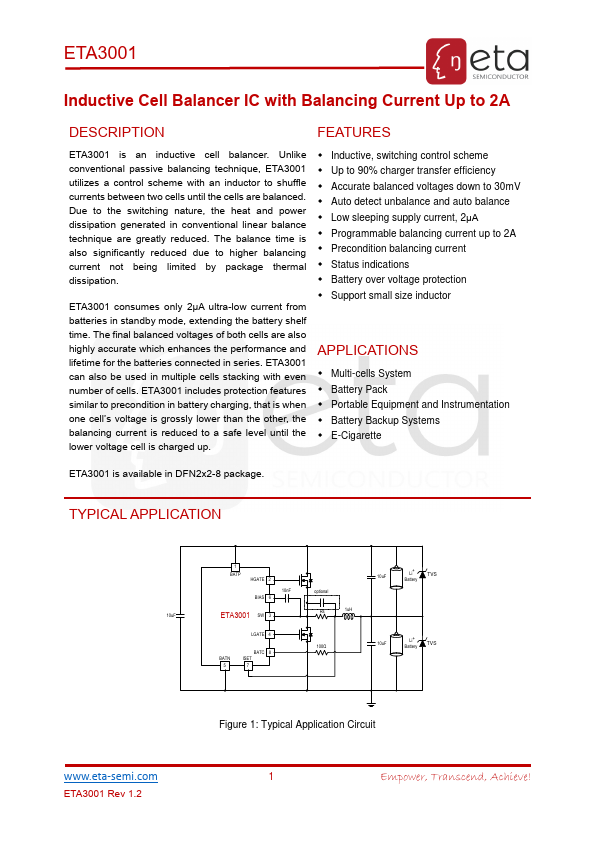

Preview of ETA3001 PDF

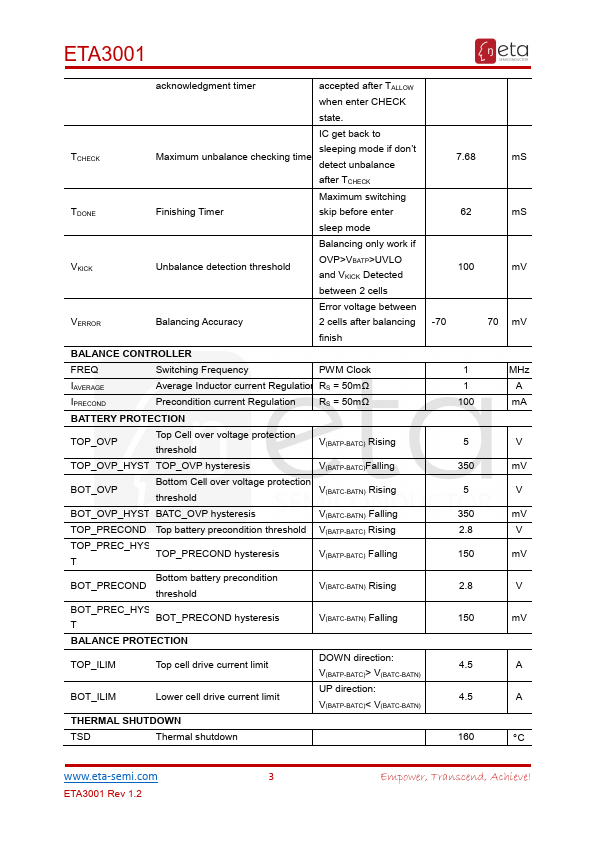

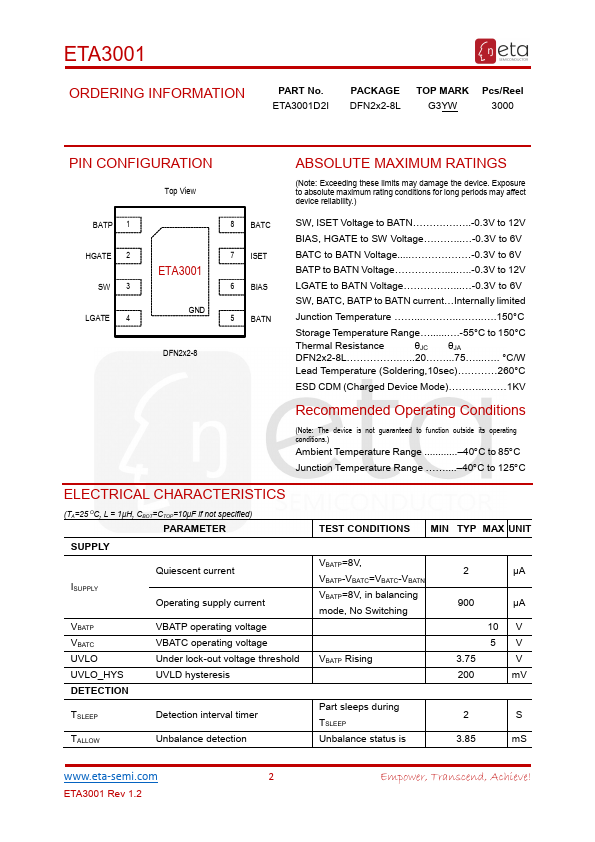

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ETA3001
Manufacturer
ETA
File Size
1.02 MB
Datasheet
ETA3001-ETA.pdf
Description
Inductive Cell Balancer
