ETA3003 Inductive Cell Balancer

ETA3003 Description

ETA3003 Inductive Cell Balancer IC with Balancing Current Up to 2A .
FEATURES ETA3003 is an inductive cell balancer.

ETA3003 Features

* ETA3003 is an inductive cell balancer. Unlike conventional passive balancing technique, ETA3003 utilizes a control scheme with an inductor to shuffle currents between two cells until the cells are balanced. Due to the switching nature, the heat and power dissipation generated in conventional linear

ETA3003 Applications

* Multi-cells System
* Battery Pack
* Portable Equipment and Instrumentation
* Battery Backup Systems
* E-Cigarette TYPICAL APPLICATION 4 BATPS BATP 6 10uF Li+ Battery 10nF BST 2 optional 4.7uF ETA3003 SW 8 Rs 1uH ISET 3 BATN 1 BATC 5 200~350Ω 100Ω 10uF Li+ Batte

📥 Download Datasheet

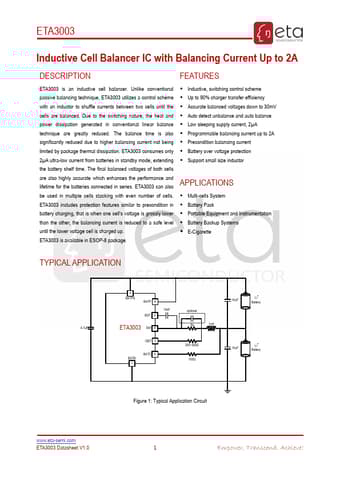

Preview of ETA3003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ETA3003
Manufacturer
ETA
File Size
1.49 MB
Datasheet
ETA3003-ETA.pdf
Description
Inductive Cell Balancer
